guitar amp RC lowpass filter

What does this calculator do?

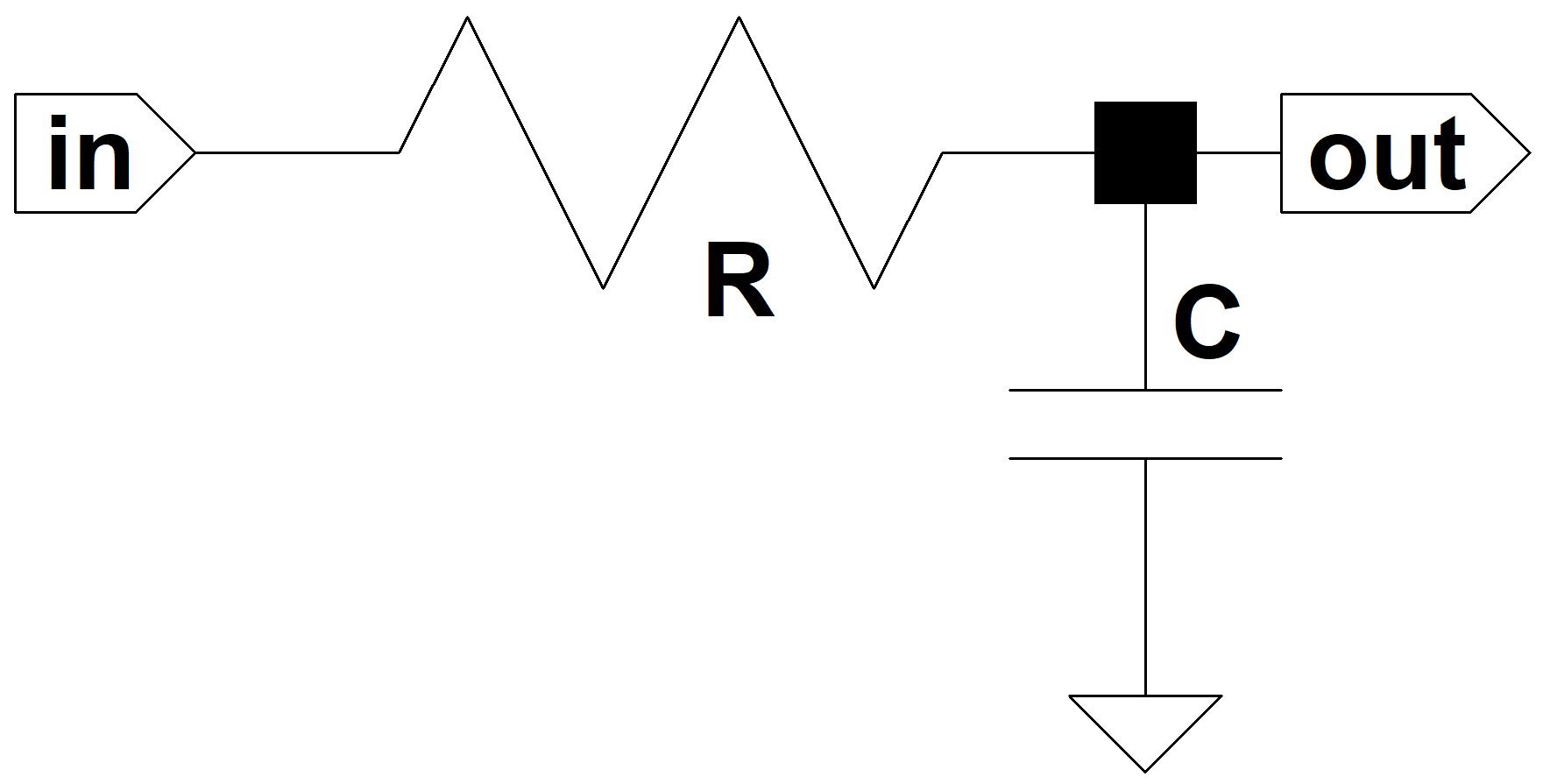

A typical tube amplifier power supply uses several resistor-capacitor low-pass ripple filters in series.

RC filters are simple and inexpensive. When they need to supply lots of current, however, they create a large DC voltage drop across the resistor. For the same amount of ripple attenuation and the same size capacitor an LC filter creates much less DC voltage drop.

The RC filters in a guitar amplifier perform more than AC ripple filtering. They also decouple preamp stages to prevent feedback that can lead to motorboating. For adequate decoupling, the high-frequency cutoff for each RC filter should be much lower than the low-frequency cutoff for the preamps. If large coupling capacitors connect the preamp stages to provide generous bass response, then better power supply filters are required for the preamp plate supplies to prevent feedback.
